10.1 Inch Resistive Touch Monitor

Name: 101 Inch Resistive Touch Monitor
Brand: hainengzhichuang
Price: 1 USD

China 10.1 Inch Resistive Touch Monitor wholesale

Brand Name : hainengzhichuang

Model Number : custom

Place of Origin : Shenzhen, China

MOQ : custom

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Size : 10.1inch

Display Type : 16:10 Ratio 10.1" Active Matrix TFT LCD

Resolution : 1280*800

Contrast : 800:1

Brightness : 300cd/m2

Refresh Rate : 60-75Hz

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Color Range : 16.7M

View angle : IPS

Contact Now

Description:

10.1 inch 1280*800 horizontal hd display, for medical displa

10.1 inch open frame resistive lcd touch monitor screen 1280*800 cheap touch monitor screen

Specification:

The specifications of 10.1 Inch 16:10 Resistive Touch Monitor
Model Number						10.1inch
Display Type						16:10 Ratio 10.1" Active Matrix TFT LCD
Resolution						1280*800
Contrast						800:1
Brightness						300cd/m2
Response Time						3/10 (Tr/Td) ms
Viewing Angle						85/85/85/85 (Typ.)(CR≥10)
Refresh Rate						60-75Hz
Backlight						LED backlight
Color system						PAL/ NTSC
Power Source						DC12V 1.5A
Monitor Size						293195.637.5MM
Active Area/Display Area						216*135MM
Working Temperature						0℃ ~ 50℃
Storage Temperature						-20℃~60℃
Color Range						16.7M
Life Time						50,000 (hours)
Interface						AV/VGA/HDMI/USB
Vesa						75mm*75mm
Material						Industrial Metal Shell
Color						Silvery
Plug						AU,EU,US,UK plug available
Installation						Desktop, wall-hanging, ceiling-hanging
Packing size						10PCS/Carton
Delivery Time						Sample:1~3 working days.
						10~100pcs:2~15 working days.
						More than 100pcs :10~25 working days.

Application

Telecommunication Devices	Telephone, Interphone, watch, radio, etc.
Home Appliances	Washing Machine, Refrigerator, Home Integrator
Industrial Control	Homotaxial Numerically-controlled machine tool
Instrument and Apparatus	Tester, Medical instruments
Vehical-mounted Digital	MP3, MP4 and vehical-mounted air conditioner
Mining	Mine's lamp charger, gas tester
Marine	Salinity tester

10.1 Inch Resistive Touch Monitor

Products quality assurance

(1) High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2)Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3) Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.

The terms of Shipping:

We will ship the items within 5 working days after the payment confirmed.
We can ship to you by DHL/FedEx/UPS/TNT/EMS. Please contact us directly and we will use your preferred ways.For the Countries & Regions where EMS cannot deliver,please choose other shipping ways.
We are not responsible for any accidents,delays or other issues caused by the forwarder.

Our Services:

programe evsluation	1 to 2 morking days
Drawings	2 to 3 working days
Customized products	3 to 4 weeks(after drawings confirmed)
Mass Production delivery	4 to 6 weeks
Software debugging
Capacity	100K per month(10.1 inches as a reference)
Process capability	G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
Technical support	Engineers to provide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3 years guarantee
One year warranty time for all of our products

Product Tags:

10.1 inch Resistive Touch Monitor

medical display Resistive Touch Monitor

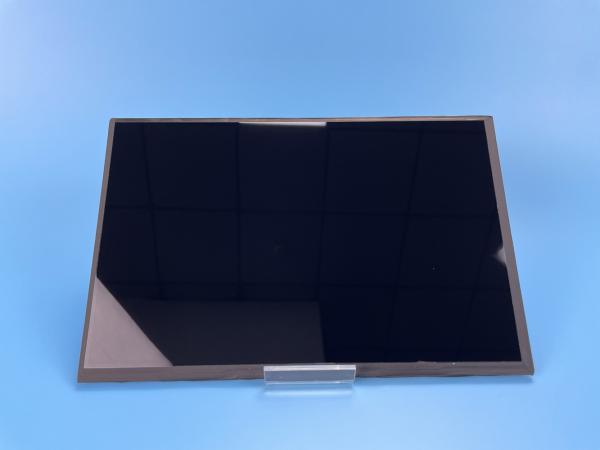

10.1 Inch Resistive Touch Monitor Images
